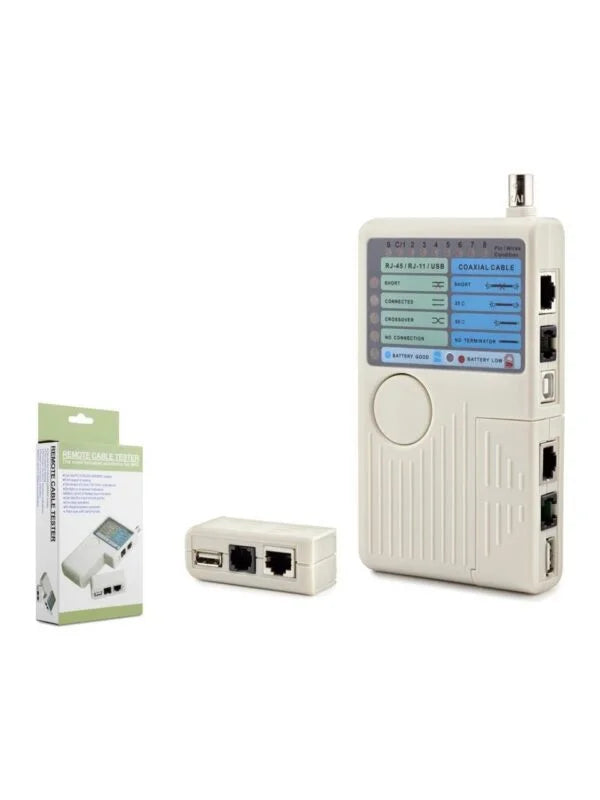

4 In 1 Network Cable Tester Rj45/rj11/rj12 /usb/bnc Lan Cable Tester

4 In 1 Network Cable Tester Rj45/rj11/rj12 /usb/bnc Lan Cable Tester

Rs.2,650.00 Rs.1,575.00 SAVE Rs.1,075.00
Add to Wishlist
Ask a Question
Description

4-in-1 Network Cable Tester RJ45/RJ11/RJ12/USB/BNC LAN Cable Tester

The 4-in-1 Network Cable Tester is an all-in-one solution for testing a wide range of data and communication cables. Designed for IT professionals, network technicians, and DIY users, this versatile tester supports RJ45, RJ11/RJ12, USB, and BNC cables.

It can test both shielded (STP) and unshielded (UTP) cables up to 300 feet, making it ideal for troubleshooting installed network wiring or patch cables. With its ergonomic handheld design, LED indicators, and one-button operation, this device ensures fast, accurate, and efficient testing every time.

Whether you’re checking for shorts, opens, or crossovers, this tester provides reliable results in seconds.

Key Features:

  • 4-in-1 Compatibility: Tests RJ45, RJ11/RJ12, USB, and BNC cables.

  • Patch & Installed Cable Testing: Suitable for both pre-installed and loose cables.

  • STP & UTP Support: Works with both shielded and unshielded LAN cables.

  • USB Shield Testing: Detects shield continuity for USB cables.

  • Remote Testing: Allows testing from two different remote points.

  • Audible Beeper: Provides instant sound feedback during tests.

  • LED Indicators: Display wire status and connection faults clearly.

  • BNC Terminator Detection: Supports 25Ω/50Ω indication.

  • Gold-Plated Ports: RJ45/RJ11 connectors feature 50μ gold plating for superior contact.

  • Portable Design: Compact and ergonomic—perfect for field use.

  • Quick Operation: One-button testing with fast, reliable results.

  • Low Battery Indicator: Alerts you when the battery needs replacing.

  • Convenient Storage: Remote unit fits inside the main body; includes a soft leather carrying pouch.

Specifications:

  • Supported Cables:

    • RJ45 (UTP/STP, EIA/TIA 568 Standard)

    • RJ11 (2–6 Conductors)

    • USB (Type A to Type B)

    • BNC (Male Connectors)

  • Testing Distance: Up to 300 ft (RJ45/RJ11/BNC)

  • Detectable Faults: Opens, Shorts, Crossovers, No Connection

  • Power Supply: 1 × 9V 6F22 Alkaline Battery (Not Included)

  • Low Battery Warning: Yes (via LED Indicator)

  • Color: Grey

  • Tester Dimensions: 162 × 85 × 25 mm

  • Tester Weight: 164 g (without battery)

  • Package Size: 225 × 110 × 43 mm

  • Package Weight: 215 g

Package Includes:

  • 1 × 4-in-1 Network Cable Tester

  • 1 × Far-End Remote Jack (RJ45/RJ11/USB)

  • 1 × BNC Remote Jack

  • 1 × Instruction Manual
