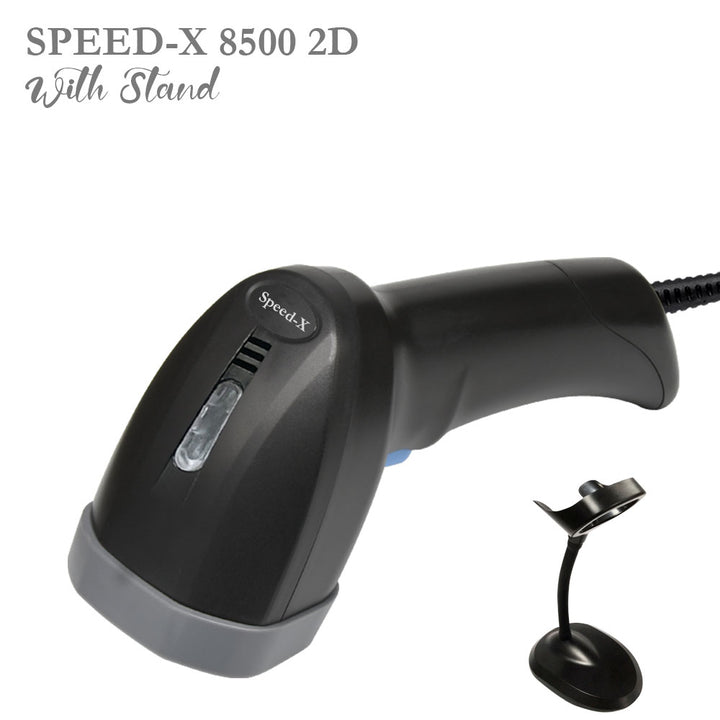

SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)
Description
Handheld Laser Scanner With Easy Operation, User-Friendly Design, Easy-To-Hold Design, And High Reliability, Yet Affordable Price Is Suitable For a Wide Range Of Applications Such As Retail, Pos, Paperwork, And Inventory Management.
SPECIFICATIONS:
| ELECTRICAL CHARACTERISTICS |
| Interface | USB HID KEYBOARD/USB VCP |
| Voltage Requirement | 5VDC±10% |
| Current Consumption Max | 120mA |
| OPTICAL CHARACTERISTICS |
| Photo Sensor | CMOS Array Sensor |
| Sensor Resolution | 648X488 Pixels |
| Light Source | White LED*1 |
| Aim Light Source | Red Bar Led |
| PERFORMANCE CHARACTERISTICS |
| Decode Angle Pitch Angle | ±55° |
| Skew Angle | ±55° |
| Tilt Angle | ±180° |
| Min Resolution 1D | 4mil(0.127) |
|
Min.PCS Value |
〉30%UPC/EAN 13（13mil） |
| Language | Multiple languages |
| Field Of View | 20°(H),21°(V) |
| Identification 1D |
UPC/EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 Of 5, Interleaved 2 Of 5, Codabar, MSI 2D：QR, PDF417，Data Matrix |
| PHYSICAL CHARACTERISTICS |
| Dimensions | 67 mm H x97 mm W x165 mm D |
| Weight | 122.8g |
| ENVIRONMENTAL CHARACTERISTICS |
| Temperature | -20° To 60°C / -4° To 140°F((Operation) ) -40° To 80°C /-40° To 176°F(Storage) |
| Humidity | 5 – 95% (Operation) ) 5 – 95% (Storage) |
| Shock Drop Test | 1.5m Drop Onto a Concrete Surface |
| Ambient Light | Fluorescent Light 4000 lx Max, Direct Sunlight 80,000 lx Max, White Light 4000 lx Max |
|
Regulatory |
|
| Electrical Safety | UL 60950， EN/IEC 60950 |
| EMI/RFI | FCC Part 15 Class B, EN 55024/CISPR 22 |
| Environmental | RoHS |
| DEPTH OF FEILD |
|
Symbology Resolution(mm) Depth Of Field |
| Code39 | 5.0 mil 40mm–90mm |
| 100% UPCA | 15.0mil 40mm—250mm |
| Code 39 | 15.0mil 40mm–250mm |
| Code 93 | 10.0mil 40mm–210mm |
