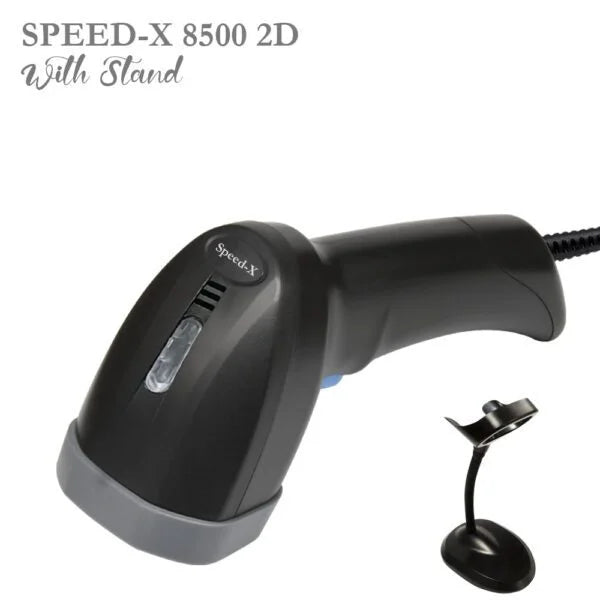

Speed-x 8500 2d Wire Cmos Handheld Barcode Scanner With Stand

Rs.5,999.00 Rs.3,967.00 SAVE Rs.2,032.00
Add to Wishlist
Ask a Question
Description

Description:

The Speed-X 8500 2D Wired CMOS Handheld Barcode Scanner (Model: CMI-8010) is a high-performance, durable, and efficient scanning solution designed for fast and accurate barcode reading. Equipped with an advanced CMOS image sensor, this scanner easily captures both 1D and 2D barcodes — making it ideal for retail, warehouse, logistics, and industrial environments.

Key Features:

  • High-Resolution CMOS Sensor:
    648×488 pixel resolution for sharp and accurate barcode detection.

  • Fast Scanning Performance:
    Supports 1D and 2D barcode decoding including QR Code, PDF417, and Data Matrix.

  • Plug & Play USB Interface:
    Easy connectivity through USB HID Keyboard or USB VCP — no additional drivers required.

  • Wide Scanning Range:
    Supports multiple scanning angles – Pitch: ±55°, Skew: ±55°, Tilt: ±180°.

  • Durable Construction:
    Withstands drops up to 1.5 meters on concrete for reliable long-term use.

  • Ergonomic & Lightweight Design:
    Compact build with a comfortable grip for extended scanning sessions.

  • Environmental Endurance:
    Operates smoothly in temperatures ranging from -20°C to 60°C and humidity levels up to 95%.

Technical Specifications:

Model: CMI-8010
Sensor Type: CMOS Array Sensor
Sensor Resolution: 648×488 pixels
Light Source: White LED ×1
Aiming Light Source: Red Bar LED
Voltage Requirement: 5V DC ±10%
Current Consumption: Max 120mA
Interface: USB HID Keyboard / USB VCP

Performance:

  • Minimum Resolution: 1D: 4mil (0.127mm)

  • Minimum PCS Value: >30% (UPC/EAN 13, 13mil)

  • Field of View: 20° (H), 21° (V)

  • Supported Languages: Multiple

Barcode Compatibility:

1D Codes:
UPC/EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI

2D Codes:
QR Code, PDF417, Data Matrix

Depth of Field:

Symbology Resolution (mm) Depth of Field
Code 39 5.0 mil 40mm – 90mm
100% UPCA 15.0 mil 40mm – 250mm
Code 93 10.0 mil 40mm – 210mm

Physical Characteristics:

  • Dimensions: 67mm (H) × 97mm (W) × 165mm (D)

  • Weight: 122.8g

Environmental & Safety Standards:

  • Operating Temperature: -20°C to 60°C

  • Storage Temperature: -40°C to 80°C

  • Humidity: 5%–95% (operating & storage)

  • Ambient Light Tolerance:
    Fluorescent: 4000 lx | Direct Sunlight: 80,000 lx | White Light: 4000 lx

Certifications:
UL 60950, EN/IEC 60950, FCC Part 15 Class B, EN 55024/CISPR 22, RoHS compliant
