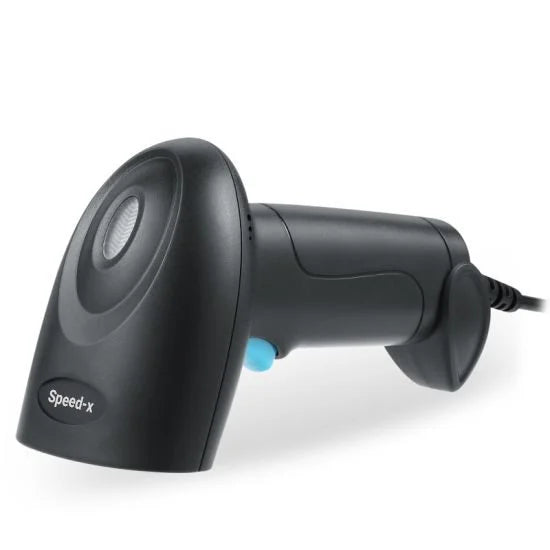

Speed-x 8500 2d Wire (with Out Stand) Cmos Handheld Barcode Scanner

Rs.4,950.00 Rs.3,150.00 SAVE Rs.1,800.00
Add to Wishlist
Ask a Question
Description

The Speed-X 8500 2D Wired CMOS Barcode Scanner is designed for fast, accurate, and reliable barcode reading in a wide range of retail, logistics, and industrial applications. Equipped with a high-resolution CMOS sensor, it easily reads both 1D and 2D barcodes including QR, PDF417, and Data Matrix codes.

With a durable, ergonomic design and plug-and-play USB connectivity, this scanner delivers superior performance and comfort even during extended use. Its advanced decoding technology ensures precise scanning from paper labels and digital screens, making it a perfect choice for POS systems, warehouses, and offices.

Key Features:

  • 📦 High-Performance CMOS Sensor — 648×488 pixels resolution for fast and accurate scanning.

  • 🔍 Supports 1D & 2D Barcodes — Reads QR Code, PDF417, Data Matrix, Code 128, UPC/EAN, Code 39, and more.

  • ⚡ Plug & Play USB Connection — Works instantly via USB HID Keyboard / USB VCP interface.

  • 💡 White LED Illumination with Red Aiming Beam for precise target alignment.

  • 🌀 Wide Scan Angles: Pitch ±55°, Skew ±55°, Tilt ±180°.

  • 🖥️ Multi-Language Support for flexible use across global systems.

  • 💪 Durable Construction: Withstands drops up to 1.5 meters onto concrete.

  • 🌡️ Wide Operating Range: Works perfectly between -20°C to 60°C.

Technical Specifications:

Category Specification
Model CMI-8010
Type 2D Wired CMOS Handheld Barcode Scanner
Interface USB HID Keyboard / USB VCP
Voltage Requirement 5V DC ±10%
Current Consumption Max 120mA
Sensor Type CMOS Array Sensor
Sensor Resolution 648×488 Pixels
Light Source White LED ×1
Aiming Light Red Bar LED
Decode Angles Pitch: ±55°, Skew: ±55°, Tilt: ±180°
Minimum Resolution 1D: 4mil (0.127mm)
Minimum PCS Value >30% (UPC/EAN 13, 13mil)
Field of View 20° (H), 21° (V)
Supported Barcodes (1D) UPC/EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI
Supported Barcodes (2D) QR, PDF417, Data Matrix
Dimensions 67mm (H) × 97mm (W) × 165mm (D)
Weight 122.8g
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity (Operation/Storage) 5% – 95% RH (non-condensing)
Shock Resistance 1.5m drop onto concrete
Ambient Light Resistance Fluorescent: 4000 lx max, Sunlight: 80,000 lx max
Safety Standards UL 60950, EN/IEC 60950
EMI/RFI Compliance FCC Part 15 Class B, EN 55024 / CISPR 22
Environmental Compliance RoHS Certified

Depth of Field (DOF):

Symbology Resolution (mm) Depth Range
Code 39 5.0 mil 40mm – 90mm
100% UPC-A 15.0 mil 40mm – 250mm
Code 39 15.0 mil 40mm – 250mm
Code 93 10.0 mil 40mm – 210mm

Package Includes:

  • 1 × Speed-X 8500 2D Wired CMOS Barcode Scanner (Without Stand)

  • 1 × USB Connection Cable

  • 1 × User Manual

Weight: 0.50 KGs
