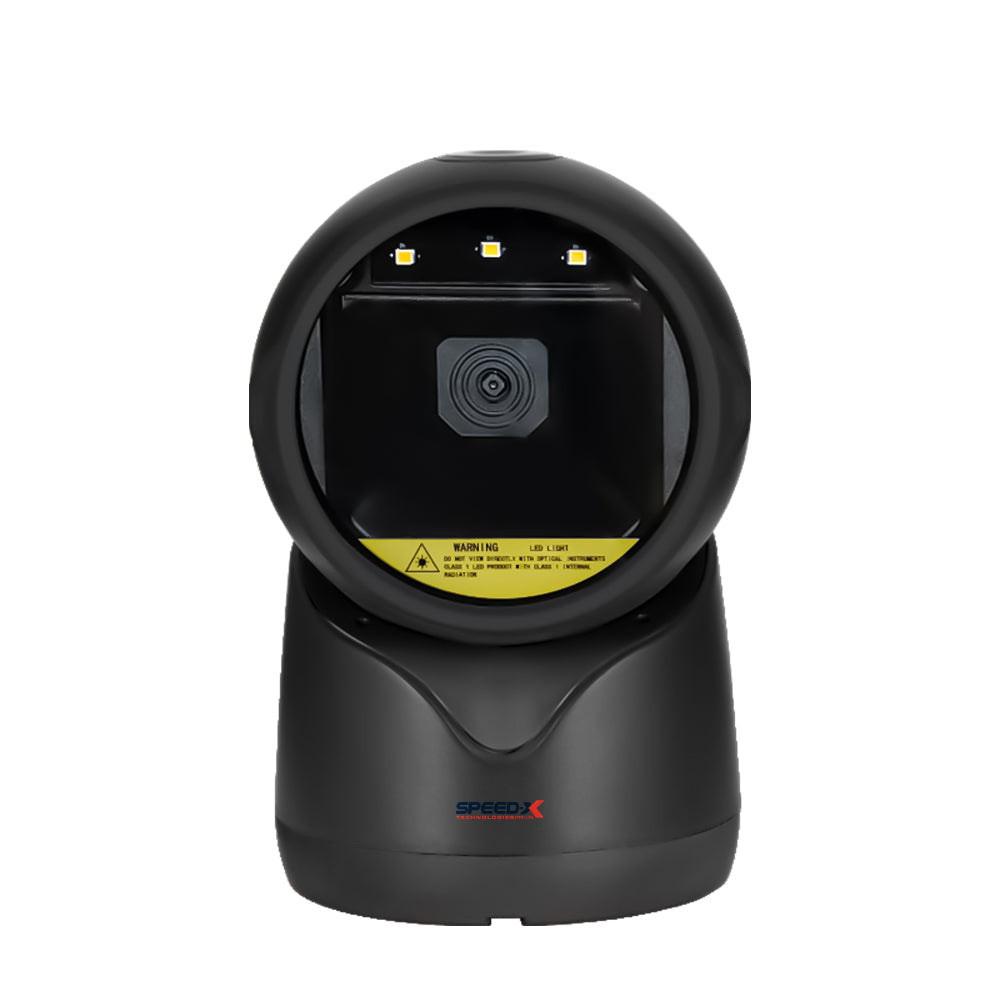

2D CMOS Desktop Barcode Scanner
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
RS-232/USB HID KEYBOARD/USB VCP |
|
Input Voltage |
DC 5V±10% |
|
Current |
Max:335 |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
640 X 480 Pixels |
|
Light Source |
RED LED |
|
Performance Characteristics |
|
|
Field of View |
39H),29V) |
|
Min Resolution |
1D：0.127mm/5mil（PCS 0.9） 2D：0.254mm/10mil（PCS 0.9） |
|
Min .PCS value |
〉20% UPC/EAN 13（13mil） |
|
Language |
Multiple Languages |
|
Decode Capability |
1D：Codabar，Code 39，Code 32 , Interleaved 2 of 5，NEC 2 of 5，Code 93，Straight 2 of 5(Industrial)，Standard 2 of 5（IATA），Matrix 2 of 5，Code 11，Code 128，GS1-128，UPC-A，UPC-E，EAN-8，EAN-13，MSI Code，GS1 DataBar Expanded，GS1 DataBar Limited，GS1 DataBar Omnidirectional ，Matrix 2 of 5，Telepen 2D：PDF417, QR code，DataMatrix ，Aztec ，China Post（Hong Kong 2 of 5），Korea Post，Han Xin code，MaxiCode，MicroPDF417，GS1 Composite Code，Codablock A ，Codablock F |
|
Physical Characteristics |
|
|
Dimensions |
100mm*94mm*152mm(L*W*H) |
|
Weight |
265g |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
0°∽50°C (operation) -10°∽60°C (storage) |
|
Humidity |
20 - 85% (operation) ) 20 - 95% (storage) |
|
Shock Drop Test |
1.5m drop onto concrete surface |
Decoding Depth of Field
|
Symbology |
Resolution |
Nearest |
Farthest |
|
Code 39 |
5mil |
0cm |
9cm |
|
Code 39 |
13mil |
0cm |
17.5cm |
|
UPC-A |
3.34mil |
1cm |
17cm |
|
QR |
20mil |
0cm |
13cm |
|
QR |
30mil |
0cm |
18cm |
|
Pay Code（QR 3*3cm） |
- |
1cm |
32cm |
|
Pay Code（QR 2.3*2.3cm） |
- |
0cm |
28cm |
